NAVIGATOR

Type

Trailer

Tank kapasitet

3000 / 4000 / 5000 / 6000 l

Bombredde

18 - 39 m

Bom Type

DELTA, DELTA FORCE

NAVIGATOR

Type

Trailed

Tank kapasitet

3000 / 4000 / 5000 / 6000 l

Bombredde

18 - 39 m

Bom Type

DELTA, DELTA FORCE

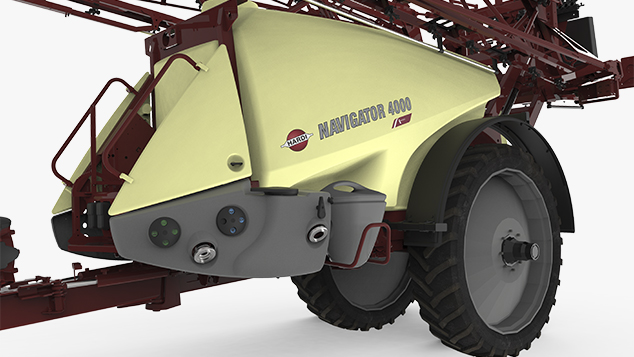

Welcome the new generation of NAVIGATOR sprayers.

NAVIGATOR “i” machines offers you the best intelligent spraying features, to make the operation of the sprayer easier and safer for the driver – and thereby the application precision can be increased significantly. With features like the automated cleaning AutoWash – to make sure to leave no residues in the liquid system or main tank, automated spraying features like AutoNozzleControl to control each nozzle individually for higher precision and faster driving speeds, and the whole new HARDI SmartCom ECU for faster diagnostics you are well prepared for the future.


AutoWash – Ultimate cleaning process

For an easier, faster and more efficient rinse process – we offer the automated AutoWash. The SmartValves are operated automatically from the tractor cabin and the operator avoids contamination from the equipment and the sprayed crop, while three rinse programmes ease the cleaning. The process is done whilst in the field, where multiple rinse actions are made, reducing the residual concentration best level in class – with only 400 litres of clean water.

  • Simple and user-friendly operation
  • Only choose cleaning program, rest is automatic
  • Operator and tractor cabin are not contaminated
  • Time-saving as the process is controlled from cabin
  • Pesticide cross-contamination is avoided

AutoFill – Fast and accurate filling

To ease the filling process and prevent overfilling, we offer AutoFill. The operator sets the fill volume, connects the hose and starts the fill via the FluidBox. The filling process will automatically stop when the demanded volume is reached.

  • Time saving so other tasks can be done
  • Choice between maximum contents or volume added
  • Start/Stop control is at the FluidBox in WorkZone
  • Prevents overfilling
  • Agitation is reduced automatically for maximum fill effect

AutoAgitation – Best agitation performance

To maximize the agitation without foaming and minimise tank residues – we offer the fully automatic AutoAgitation. When filling, AutoAgitation ensures maximum FastFiller capacity – while a manual override is always possible from the FluidBox.

  • Maximizes agitation without foaming
  • Minimizes tank residues when the spray job is finished
  • Automatic tank contents readout displayed on the terminal

PrimeFlow – Pressure circulation

PrimeFlow circulates and primes the boom before the actual spraying and is controlled by an ON/OFF motor at each nozzle body. Open/close action is instant.

  • No untreated areas at spray start
  • HARDI PENTALET 5-nozzle holders as standard
  • No chemical sedimentation in the spray lines
  • Flush of boom lines is possible without spraying on the ground
  • Dynamic setup of sections

HARDI SmartCom – ISOBUS platform

The HARDI SmartCom offers the user a full ISOBUS experience, meaning easy connection to tractors and controllers. The faster processor will also offer you a more accurate and responsive liquid regulation system as well as the ultimate steering system thanks to faster response times.

  • Full ISOBUS for easy connection
  • Quick and easy diagnostics with HARDI ServiceTool
  • Faster and more precise regulation system
  • Ultimate steering precision
  • Prepared for cloud connections

FluidBox – Operation of fluid system

With the NAVIGATOR “i”, an updated FluidBox is located at the WorkZone in the front. With a functional design, the sprayer operator will be able to quickly start the demanded operation.

  • Easy operation of the SmartValves
  • Control of filling, agitation, spraying and cleaning

AutoNozzleControl

Get full control of your spray job with the automated nozzle on/off feature AutoNozzleControl. Thanks to the PrimeFlow system, you will receive the highest level of precision, due to the exact control of each nozzle.

  • Every nozzle is controlled automatically
  • Minimize double sprayed area thereby saving up to 10 % chemicals
  • Avoid crop damage due to double spraying
  • Avoid spraying in critical areas by switching off outer nozzles
  • In auto mode the sprayer works with 50 cm sections
  • Turning on and off of nozzle when turning in headland
